Q: How can I establish a connection to a Helmsman's Display computer that is not in the same network range?

Which format should be used in the external servers file?



A: Here the steps to take:

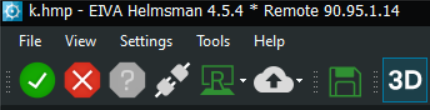

  • Open the Helmsman's Display menu bar
  • Press Connect...
  • Browse to the External servers option

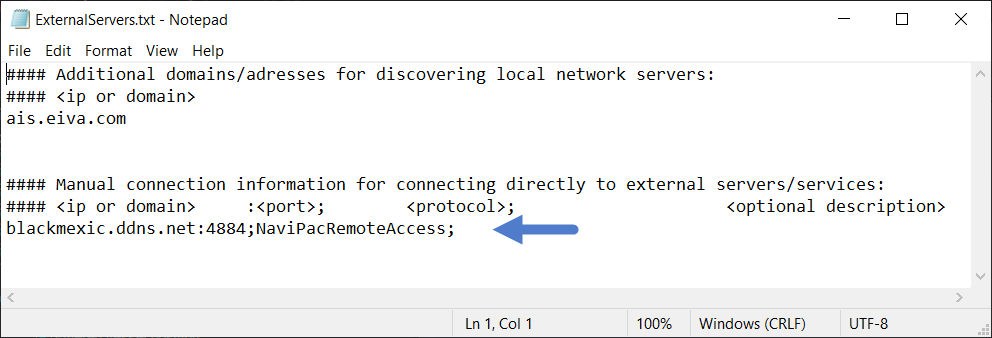

  • Add the IP port number and protocol, eg 10.0.0.112:4884;NaviPacRemoteAccess, to the list. If you put it on the list, it appears as a server in the connection window in Helmsman's Display and you can connect to it.




See also

https://eiva.freshdesk.com/a/solutions/articles/43000582736
