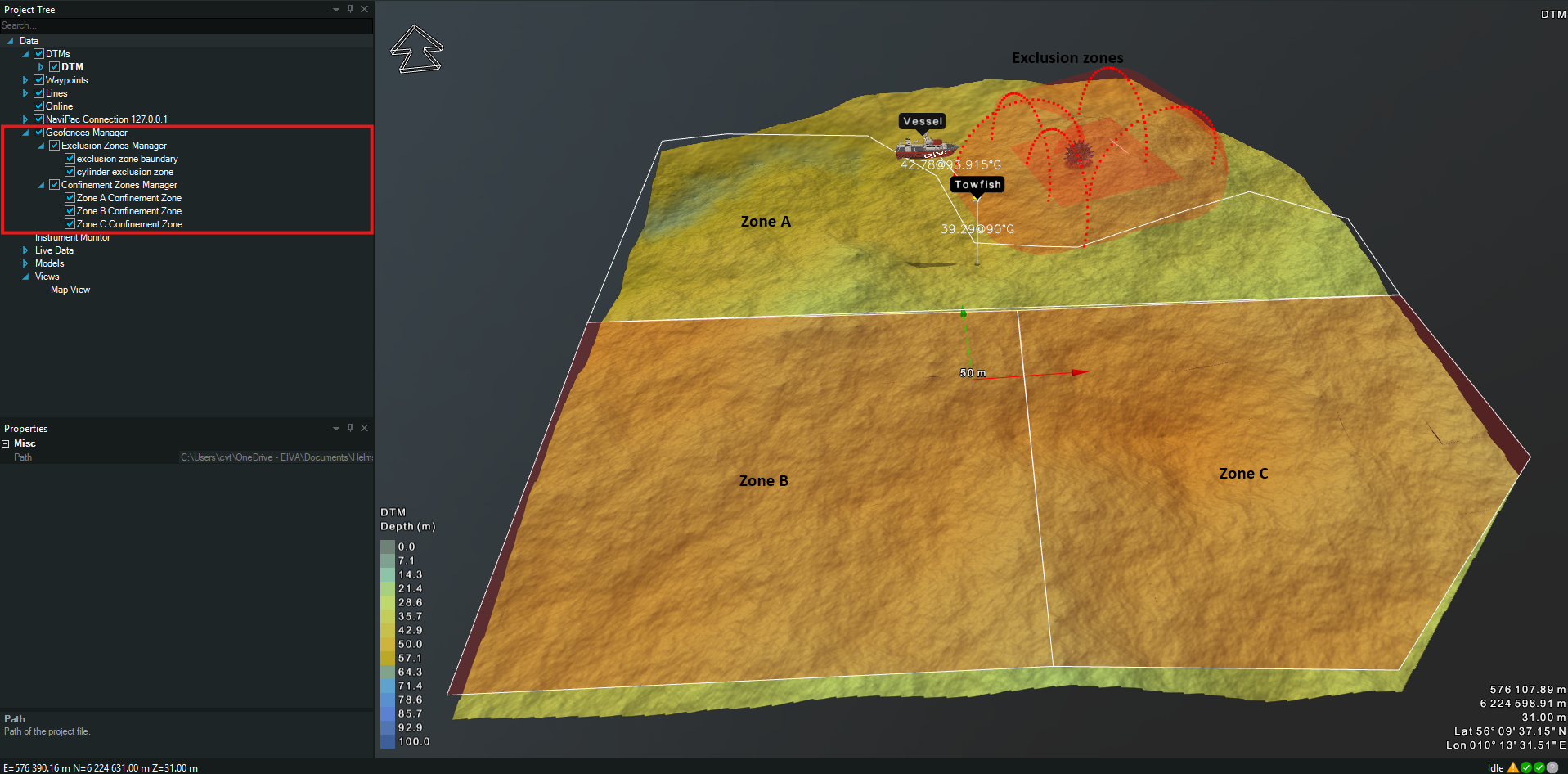

In this article the Geofences Manager feature will be presented. This feature includes the confinement and exclusion zones. If any of them or both are being created in a project each of them will be present under the Geofences node in the Project tree (Figure 1). For the exclusion zones is the node Exclusion Zones Manager and for the confinement zones is the Confinement Zones Manager.
Figure 1 - Geofences Manager

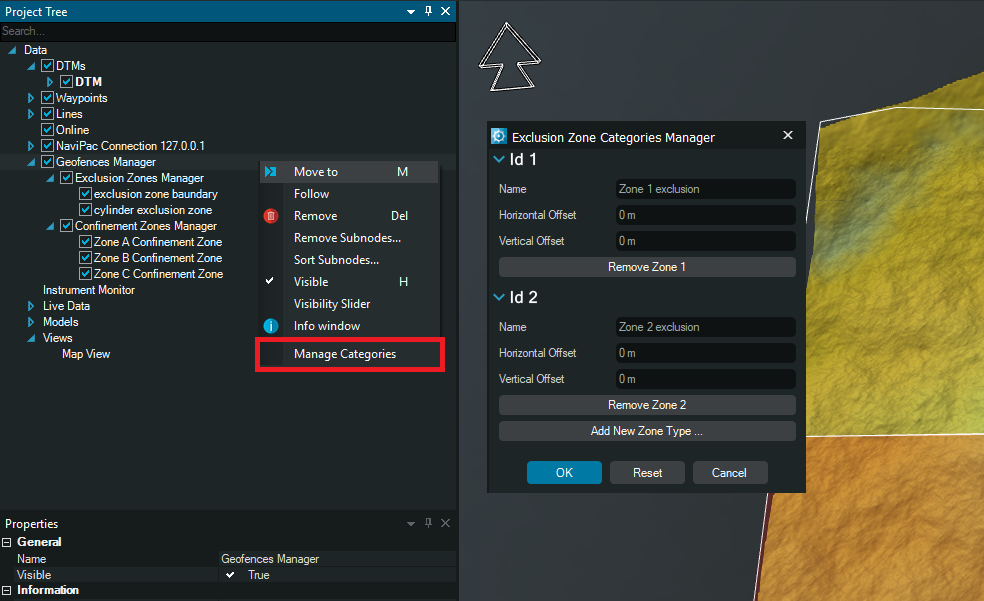

The Geofences Manager allows the user to keep in good order the zones created. Manage Categories allows the user to create categories only for the use with the exclusion zones. (Figure 2).
Figure 2 - Manage Categories

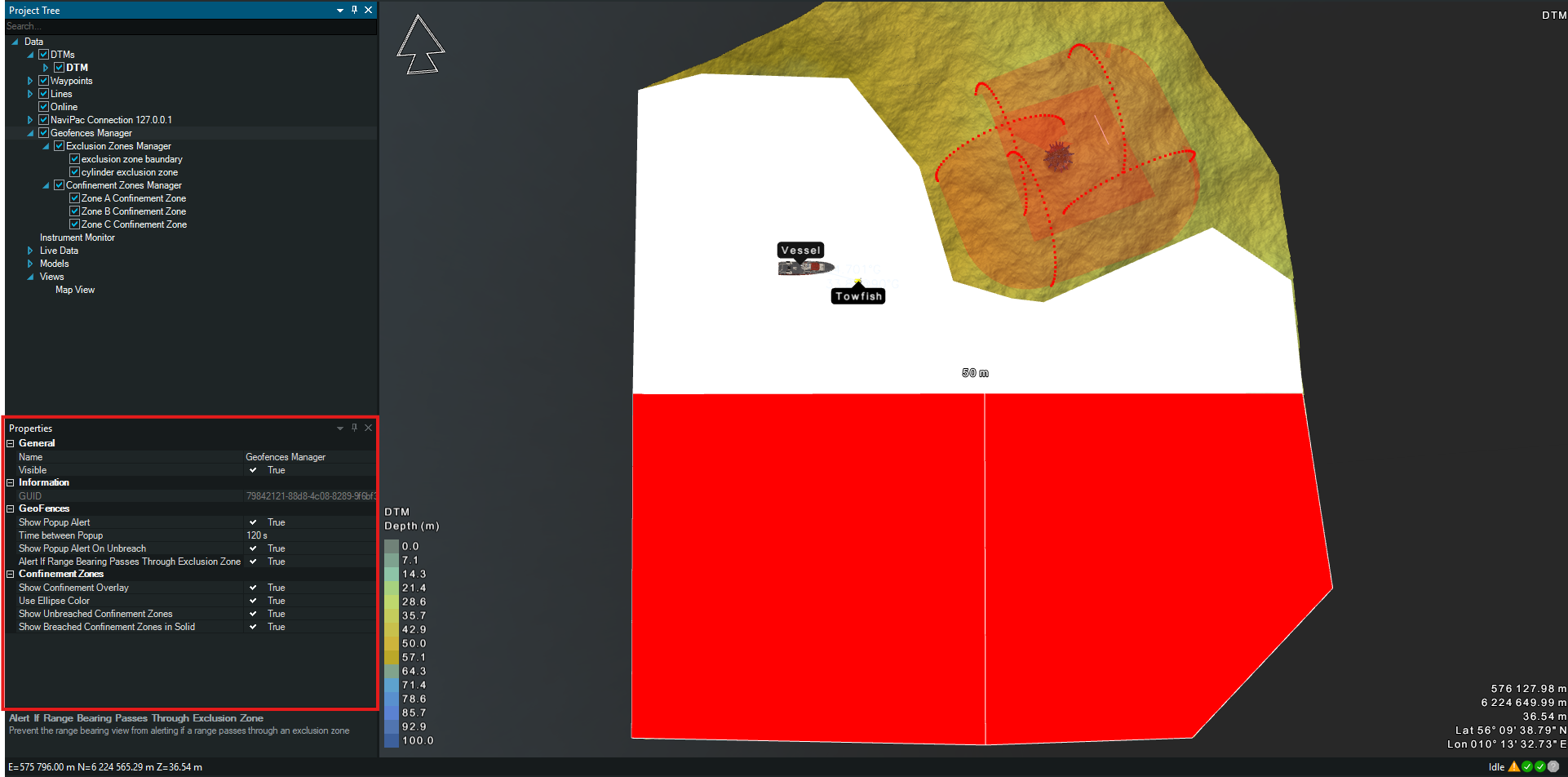

Properties of the Geofences Manager are allowing the user to set true or false the following options (Figure 3):
- Show Popup Alert (shown and acknowledged for X seconds per alarm)
- Time between Popup (in seconds)
- Show Popup Alert On Unbreach
- Alert if Range Bearing Passes Through Exclusion Zone
- Show Confinement Overlay
- Use Ellipse Color
- Show Unbreached Confinement Zones
- Show Breached Confinement Zones in Solid
Figure 3 - Properties of the Geofences Manager
