Most of the EIVA software packages can be run in Demo mode meaning sensors can be simulated only.
You could install NaviPac 4.6.3 and check it yourself.
To interface hardware e.g. GPS antenna, gyro etc you need a licence for the software package you have installed.
You can buy it on the EIVA  home page, for virtual training participants the licence will be provided by the teacher.


Use this option when running an older software version.
It allows you to create a softdongle.txt (the old activation method to activate EIVA software)
Allows to create a licence file for usage on a remote computer without internet connection (Offline pc)



The NaviSuite Licence Activator


The NaviSuite Licence Activator is used to activate a EIVA software package by entering a 9 digit licence activation code.

EIVA software packages have the Licence Activator included under the Help tab. It starts automatically when no licence is available.


Older software packages like NaviPac 3.10 don't have the LIcence Activator included and you need download it from the EIVA download site, https://download.eiva.com/ and install it.

The latest version is fetched by simply closing and reopening it once.

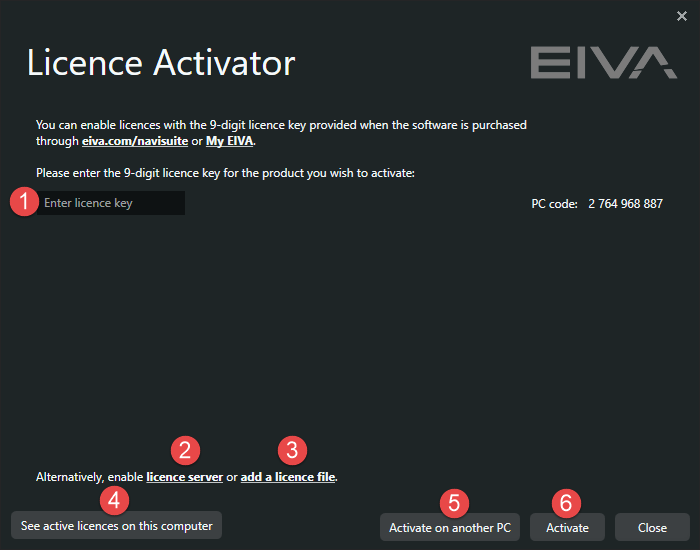

It has six UI elements that are described below.


  • Enter licence key
    Enter the 9-digit licence activation key that you bought from the My EIVA self-service portal to activate the licence on your local computer as shown below:

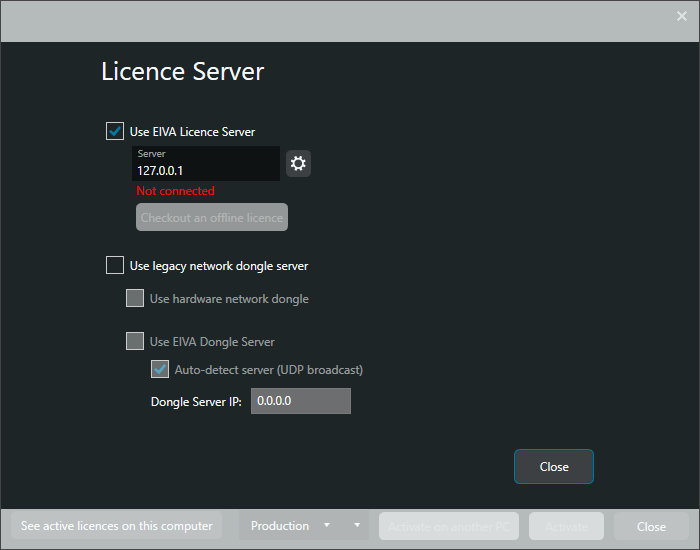

  • Licence server
    Use this option if you purchased an EIVA hardware network dongle, or you are running a EIVA Licence Server.

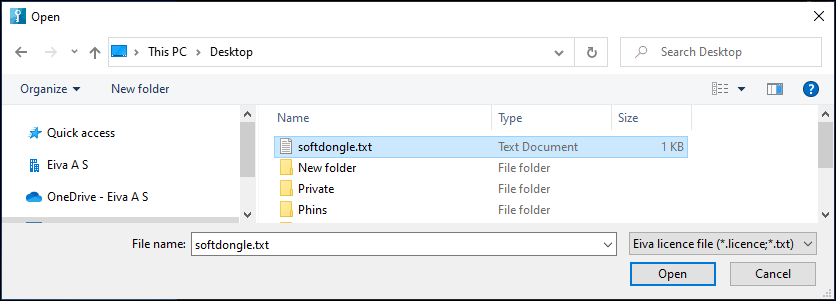

  • Add a licence file

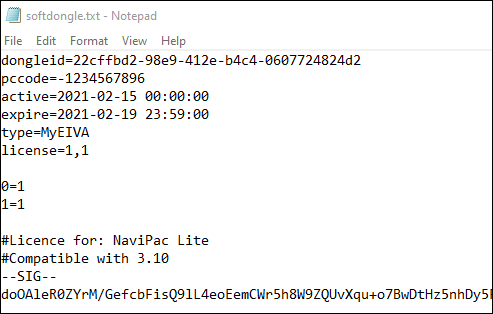

    Use when you want to load eg an emergency softdongle.txt that you got from the EIVA Support team or a *.licence file.
    Note that a softdongle.txt file does not need to be loaded but can also be copied to the C:/EIVA/ folder to activate the software package.



  • See active licences on this computer
    View the licence history and error codes.

  • Activate on another computer
    Allows to create a licence file for usage on a remote/offline computer (without internet):
    See here How to activate EIVA software on a remote/offline computer

    Also the user can create a licence file (softdongle.txt). This is needed when running an older software version. Check these links (in light grey) when you have installed:

    NaviPac:
    NaviPac 3.10. For NaviPac 4.2.1 it is advisable to update to NaviPac 4.2.2 to have full Licence Activator functionality.

    NaviModel:
    NaviModel 4.3.x,
    For NaviModel 4.4 it is advisable to update to NaviModel version 4.4.2.
    For NaviModel 4.2 and older you cannot use the Licence activator or licence activation key in combination with  the  3D Pipe and S-CAN options, please contact our EIVA Support team and request a softdongle.txt file.

    NaviEdit:
    NaviEdit 8.4.x, here it is advisable to update to a new version.
    NaviEdit 8.3 and older, here you cannot use the Licence activator or licence activation key. Please contact EIVA Support and request a softdongle.txt file.

  • Activate
    Activate new subscription licences on your local computer.



Licence status


The option See active licences on this computer is for viewing the active licences and the licence history.

It includes helpful error messages that are listed below:

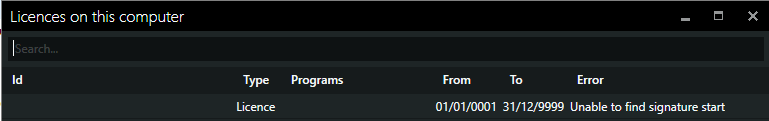

  • Unable to find signature start
    You have most likely loaded a wrong txt file.
    Hover with the mouse pointer over the licence that returns an error and double-click on it.
    This will open the file and you can see its details.
    Please send this file to Support@eiva.com so they can help you further.

  • Wrong PCCode
    The computers PC code and the one in the licence file don't match.
    Hover with the mouse pointer over the licence that returns the error and double-click on it.
    This will open the file and you can see its details.
    Please send this file to Support@eiva.com so they can help you further.


  • Expired
    The licence period has expired.



Server licence

EIVA has also a Licence Server software that functions the same as the networked WibuKeyBox.

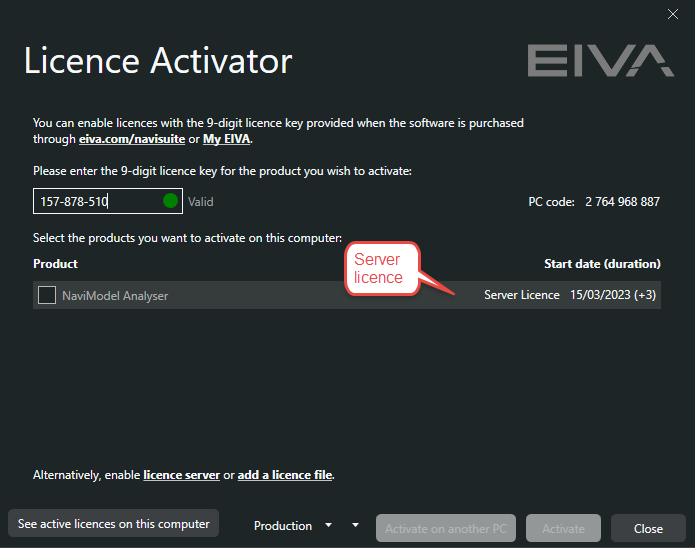

If you are in doubt about your 9-digit licence key, you can find out by entering it in the Licence Activator.

Here it shows the Server Licence information.

Note, that a Server Licence cannot be activated in the Licence Activator, but needs to be activated in the Licence Server software.
