My MBES data is not showing sensor information in Data Editor due to a big latency. How can I correct the latency in the MBES data/file?

MBE data with large latency in it eg 16 days can be used by following these steps:

If you use the newest NaviEdit_8.7 (not yet released) you can see this in the NaviEdit report

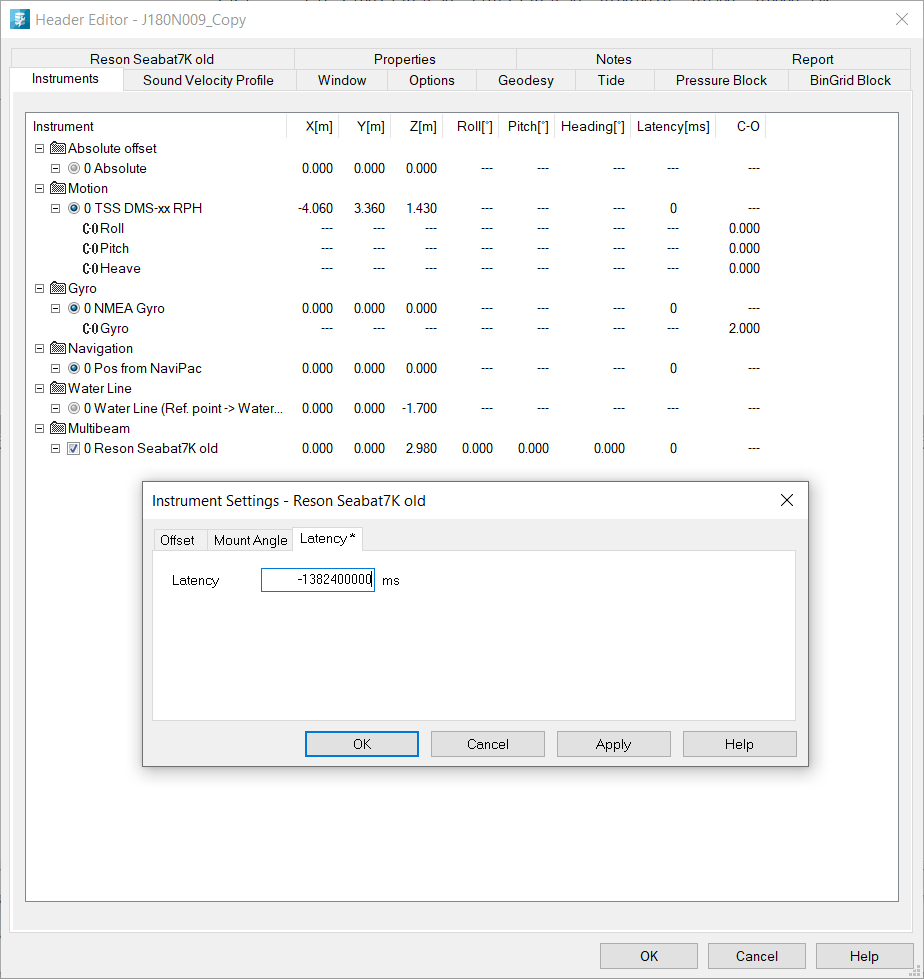

This can be fixed by applying the 16 days latency in the HeaderEditor:

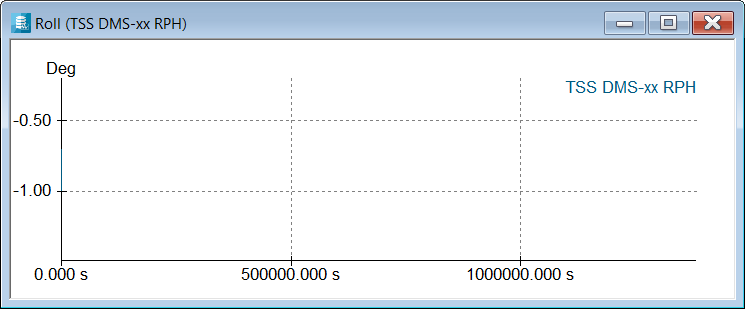

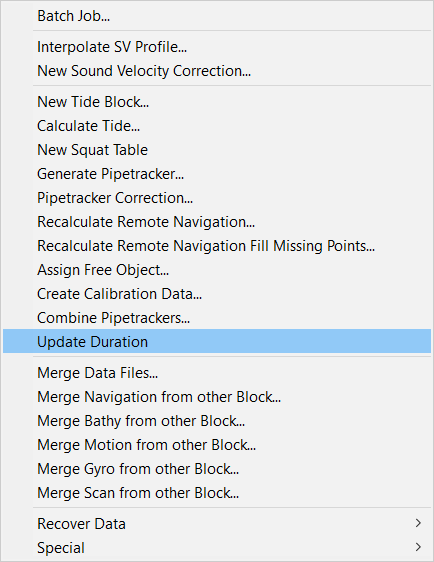

In the newest NaviEdit you can also adjust the duration of the Block

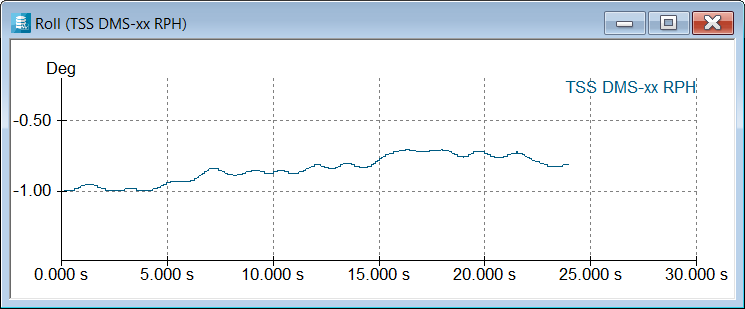

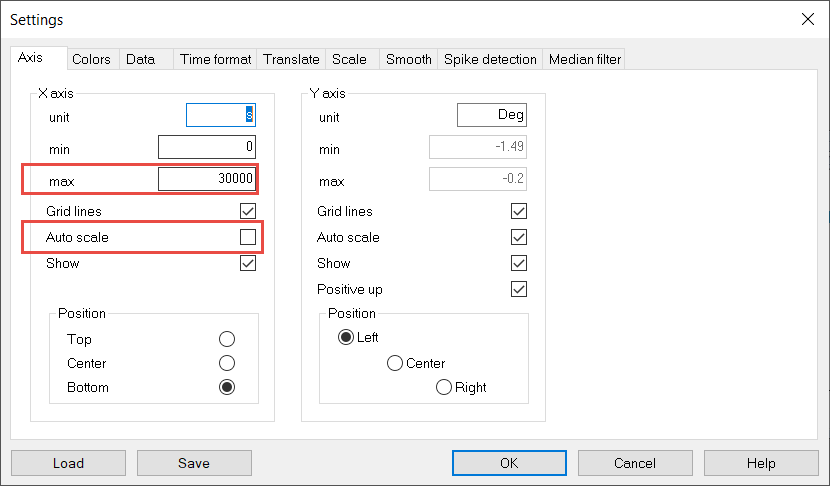

so the data does not appear condensed at 0 s. You can also adjust this, directly in the DataEditor
