Q:How can I interface an R2Sonic multibeam in NaviScan Config?

A: Open NaviScan config and select the following driver, a single head is used for example:

For the multibeam data the Head of the multibeam IP address needs to be used and the port 4000.

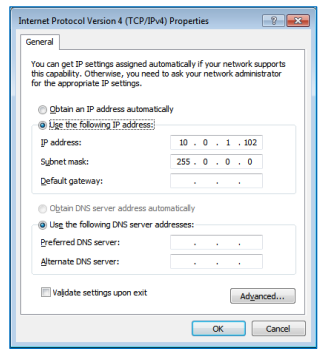

Please note, prior to interface the R2Sonic multibeam in NaviScan, configure your Network card to default IP address 10.0.1.102 and subnet 255.0.0.0.

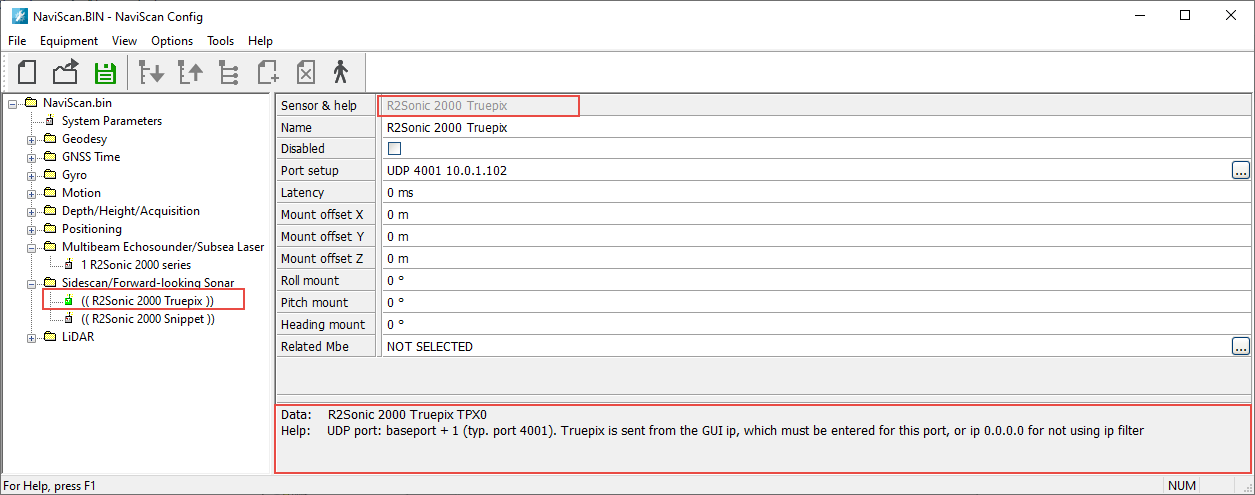

Truepix and Snippet can also be interface in NaviScan as follows:

For the Truepix and Snippet the IP address of the GUI needs to be used and the Ports 4001 and 4006.

For UHD mode (ultra high density) please visit this article:

https://eiva.freshdesk.com/a/solutions/articles/43000582053
