How can I add the NaviEdit connection in my Project tree from NaviModel Producer? Print

Modified on: Fri, 24 Oct, 2025 at 8:21 AM

Q: How can I add the NaviEdit connection in my Project tree from NaviModel Producer?

A: If you don't see the NaviEdit connection on your Project tree you can do the following:

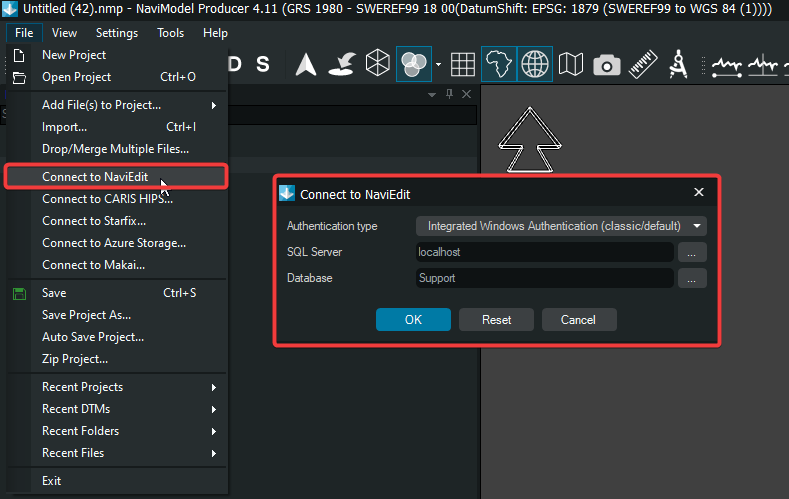

1. Go to File - Connect to NaviEdit and fill in the details:

This way the connection will not remain after NaviModel is closed. If you want so you have to use the second step from below.

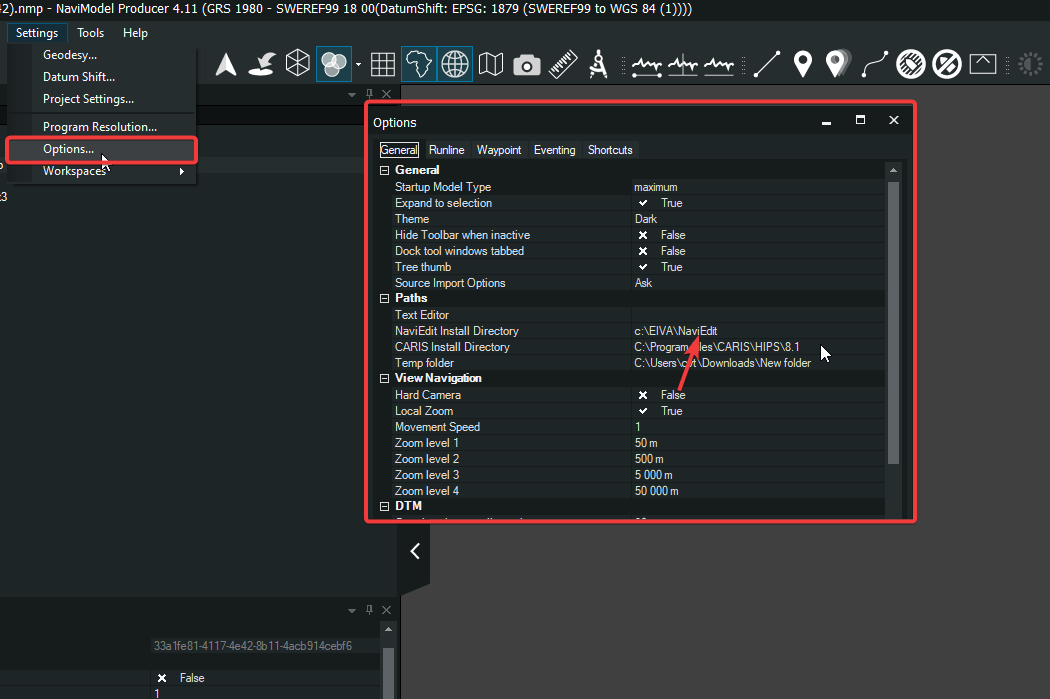

2. Go to Settings - Options and under Paths define the NaviEdit Install Directory:
