Q: How to add an IP Camera/Live Video in Helmsman's Display 4.12 included in NaviPac 4.11
A: In Helmsman 4.12 the feature to add a camera to the project has been changed. The Camera Manager and camera is now added via the Camera toolbar (Figure 1)

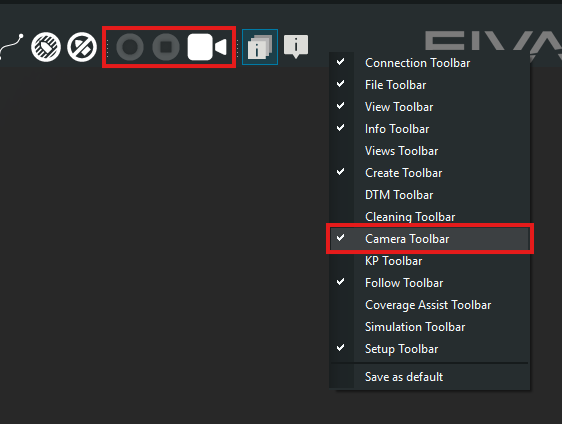

Figure 1 - Camera toolbar and Camera manager
In the Camera Toolbar there are three buttons: record, stop recording and open camera manager. Open camera manager can also be done if right click on Camera manager node in the Project tree and select settings.
To add a camera click on the Open camera manager and in the new window press on Add camera and fill in the details for the camera that must be added in the project.(Figure 2 and 3)

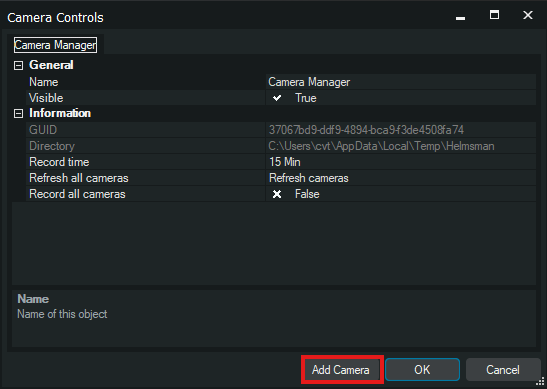

Figure 2 - Add camera

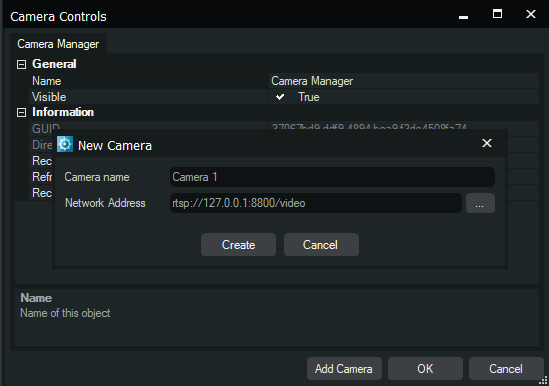

Figure 3 - Add camera details
Once the camera has been added the properties of the camera can be edited and the camera view window appears in the project (Figure 4). From the Properties of the camera a screen overlay can also be added and configured.
All the cameras added will be shown under the Camera Manager node.

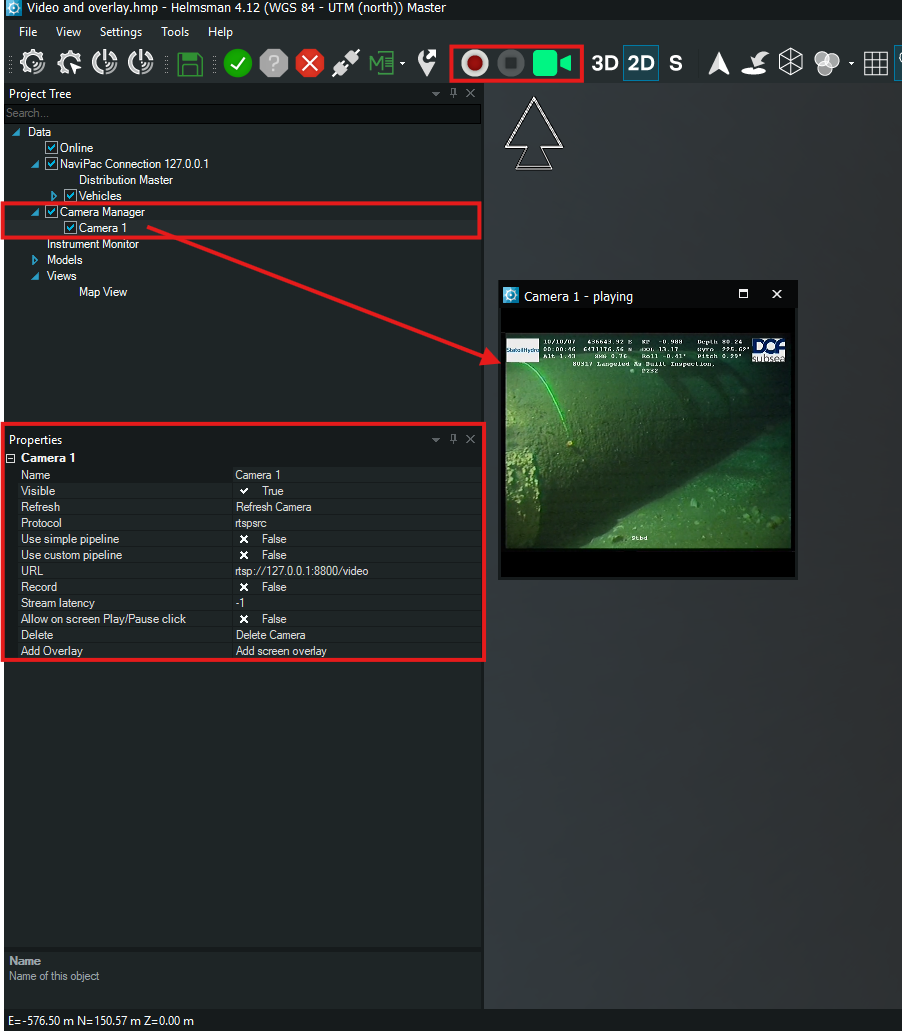

Figure 4 - Properties of the camera
