Q: How can I add a sound velocity profile in NaviScan Online?

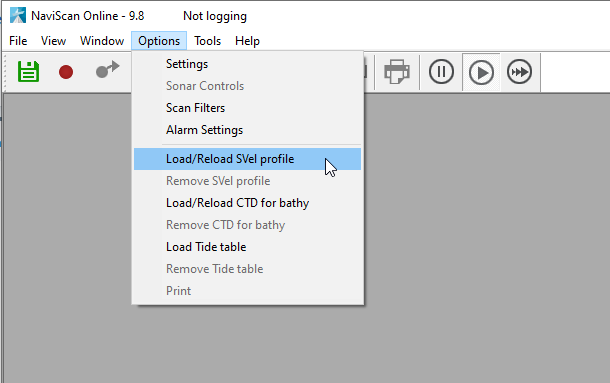

A: In NaviScan Online you can add a sound velocity profile to be used for visualizing the data corrected for refraction as follows:

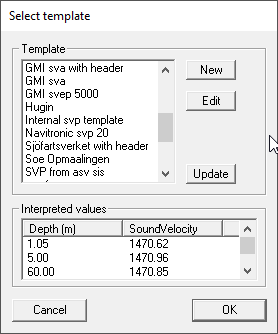

Select or create a new template for your profile:
Once it has been loaded successfully the following message is shown on the Main Window:

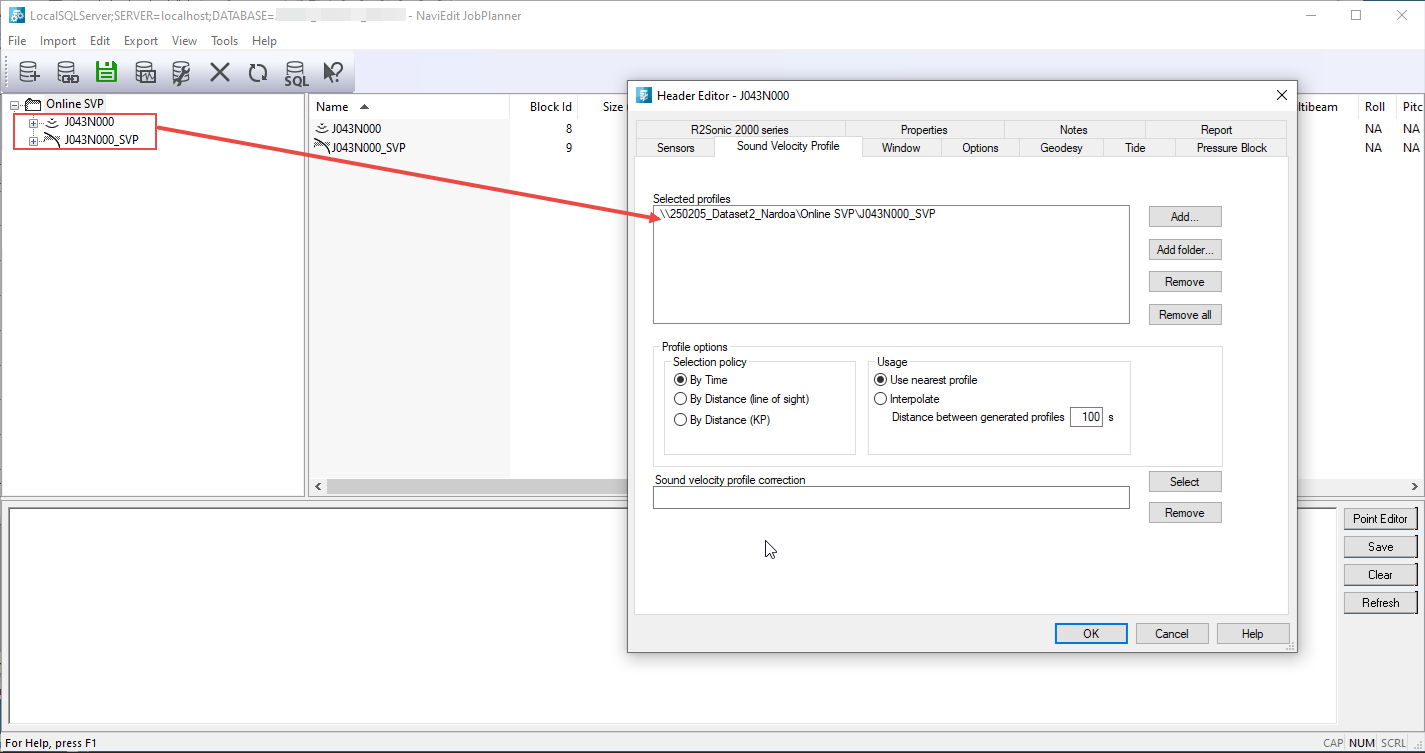

After the sbd files are logged, once opened in NaviEdit the SVP profile is automatically linked, if you want to change it, you can unlink it and import a new one and link it in NaviEdit with the Import-ASCII Files:
Please note if the sbd is imported directly to NaviModel for quick checking, the SVP profile is not going to be applied.
